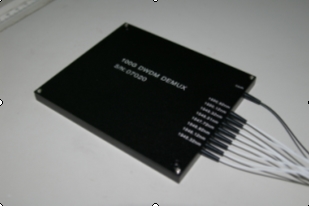

8 channel CWDM Module

4/8/16 channel CWDM Module

＊Low insertion loss.
＊Low PDL.
＊Compact package.
＊High reliability (GR-1209、GR-1221 qualified).
＊Applications：PON network、CATV network、Power distribution、FTTx、Test equipment、Telecommunication.

Parameter(8 channel)	Unit	Specificication
		Mux	Demux
Center Wavelength	nm	1270~1610	or 1271~1611
Channel Spacing	nm	20	20
Bandwidth@-0.5dB	nm	≧13	(20nm channel spacing)
Ripple in Passband	dB	≦0.5	≦0.5
Insertion Loss(Typical)	dB	≦3.2(2.8)	≦3.2(2.8)
Adjacent Channel Isolation	dB		≧30
Non-Adjacent Channel Isolation	dB		≧40
Return Loss Directivity	dB	≧45/50(50/55)	≧45/50(50/55)
PDL	dB	≦0.1	≦0.1
Power Handling	nW	300	300
Operating Temperature	℃	-5~70	-5~70
Package Dimension	mm	110x95x7.5	110x95x7.5
