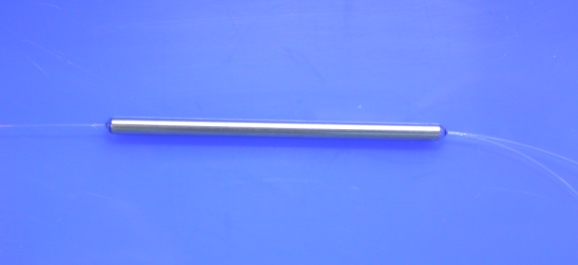

1310+1490/1550WDM

1310+1490/1550WDM

1310+1490/1550WDM

商品型號: 1310+1490/1550WDM

High Isolation
Low Insertion Loss
Comply with RoHS
Applications
Local Area Networks
FTTH networks
CATV

Parameter	Unit	1310+1490/1550 nm
Pass Port λ1		nm	1525~1580
Reflect Port λ2		nm	1260~1360&1480~1500
Pass Port	Insertion Loss	dB	≦1.0(Typical 0.8)
	Isolation	dB	≧25(Typical 30)
	Ripple	dB	≦0.3
Reflect port	Insertion Loss	dB	≦0.8(Typical 0.6)
ReturnLoss	/Directivity	dB	≧45/50
PDL		dB	≦0.1
Operating Temperature		℃	-0~70
