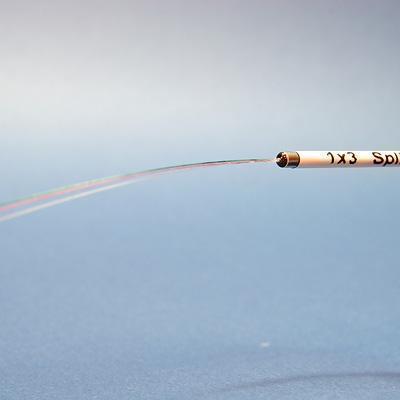

fiber coupler 1x3

fiber coupler 1x3

fiber coupler 1x3

Product ID: fibre splitter 1x3

Coretech Fused Splitter provides high performance, reliability and compact in size. It's qualified by industry standard test procedures and can be customised designed to meet specified feature applications.


splitter 1x3.pdfDownload Now !

»  Features:
Low Insertion Loss, PDL
Compact Package
high Reliability (meet GR-1209/1221)
RoHS Compliant
See more complete detail
SpecificationsSplittingRatio33:33:33
Grade   Premium Standard
Operating Wavelength nm 1310 ± 40and 1550 ± 40
Operating Temperature(max.) °C -40~85 -40~85
Insertion Loss(max.)* dB 5.4 5.8
Uniformity(max.) dB 1.0 1.5
PDL(max.) dB 0.25 0.3
Return Loss(min.) dB ≥50
* values are reference without connector loss
»  Certificate:
  • RoHS
  • GR-1209/1221
»  Order Information:
  • Minimum Order: Negotiable
  • FOB: Taiwan
