rack mountable 4U
Product ID: patch panel 4U

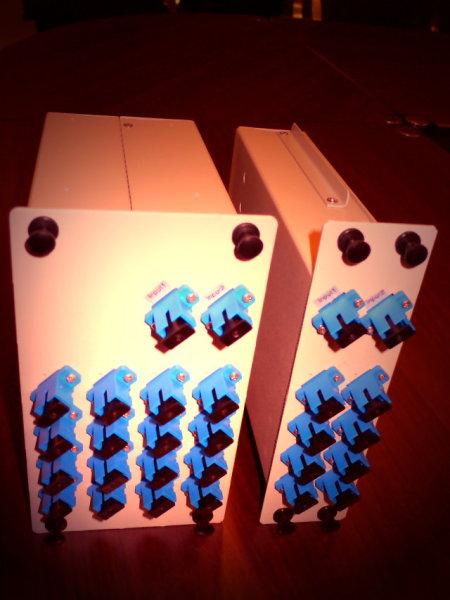

LGX module carry out the complete solution of cable management.The module enable to integrate splitter/WDM or any other components for a better field installation. With mounted adaptors, LGX module are rack mountable and compliant with 4U chassis for easy 19" rack setup.
1x2 Specifications |
nm |
Split Ratio 50/50 |
Operating Wavelength |
dB |
1310±40,1490±10 and 1550±40 |
Insertion Loss (Max) |
dB |
3.9 |
Uniformity (Max) |
dB |
1.2 |
PDL (Max) |
dB |
0.2 |
*other 1x2 specification in different coupling ratio is shown in 1x2 catalog
Other Configurations |
1x3 |
1x4(2x4) |
1x8(2x8) |
1x16(2x16) |
1x32(2x32) |
Operating Wavelength |
1310±40,1490±10 and 1550±40 |
|
Insertion Loss Max. (dB)* |
5.8 |
7.5 |
11.5 |
15.1 |
15.8 |
Uniformity Max.(dB) |
1.5 |
1.8 |
2.5 |
3.2 |
3.5 |
PDL Max. (dB) |
0.3 |
0.4 |
0.6 |
*values are without connector loss
|
» Order Information:
- Minimum Order: Negotiable
- FOB: Taiwan
