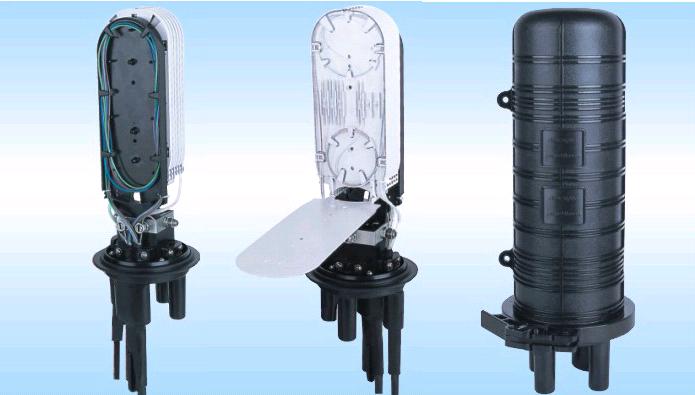

dome heat shrinkable seal closure 703

dome heat shrinkable seal closure 703

optical closure703

Product ID: optical closure 703

FOSC 7-series can be used above the ground where the temperature changes a lot and strong ultraviolet radition or underground where is no water. the closure can be used for pole mounting, wall mounting, aerial application, firect buried or duct.

There is a PC fiber cable fixing kit on the housing together with heat shrinkable fixing sleeve for double fixation.
closure703Download Now !

»  Features:
High Quality PC Material
Innovative Structure Design
Reliable Fixing Method of Fiber Cable
See more complete detail
Outside Dimension HxDiameter (mm) 510xφ250
Total Capacity Bunchy Tray 031(12 cores) 192cores
Ribbon Tray 027(48cores) 192~384cores
Bunchy Tray 029(72 cores) 360~720cores
Bunchy Tray 034(24 cores) 576cores
Ribbon Tray 040(72 cores) 432cores
Ribbon Tray 030(216 cores) 1728cores
Inlet/Outlet Max. Cable Diameter 1xφ47 and 7xφ22
»  Certificate:
  • RoHS
»  Order Information:
  • Minimum Order: Negotiable
  • FOB: Taiwan
